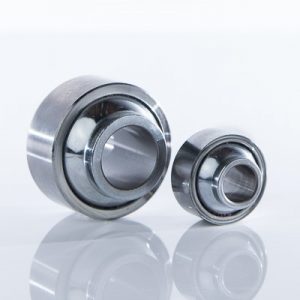

Uniball Spherical Bearing HIN

Uniball Spherical Bearing HIN

$50.00 AUD
$50.00 AUD
Sale Sold out
  • Heavy-duty precision inch high misalignment series
  • PTFE liner

BALL

  • 52100 Steel
  • Heat treated
  • Hard chrome plated

RACE

  • Alloy steel
  • Heat treated

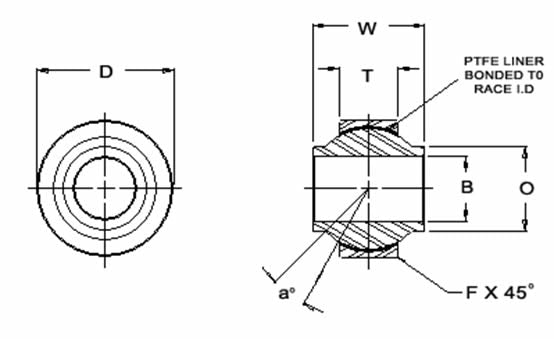

Bearing
Part Number		 B
DIA		 D
DIA		 W
WTH		 T
WTH		 O
DIA		 Ball
DIA		 F
Chamfer		 a Mis
Angle		 ULT Static
Radial Load		 Approx
Weight
+.0015
-.0005		 +.0000
-.0005		 +.005
-.005		 +.005
-.005		 REF REF REF REF (lbs) (lbs)
HIN4T .2500 .7400 .593 .255 .390 .593 .020 24 7,560 .040
HIN5T .3125 .9060 .813 .345 .512 .781 .030 23 16,983 .080
HIN6T .3750 .9060 .813 .345 .512 .781 .030 23 16,983 .068
HIN7T .4375 1.0000 .875 .345 .618 .875 .030 22 19,023 .095
HIN8T .5000 1.1250 .937 .401 .730 1.000 .030 20 25,275 .160
HIN10T .6250 1.3750 .1.200 .567 .856 1.250 .030 20 44,652 .245
HIN12T .7500 1.5625 1.280 .620 .970 1.375 .035 18 53,716 .315
