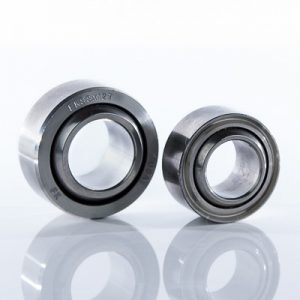

Uniball Spherical Bearing FK FKSSX

Uniball Spherical Bearing FK FKSSX

$61.00 AUD
$61.00 AUD
Sale Sold out
  • Precision series
  • Stainless steel
  • PTFE lined
  • Bearings with PTFE liner do not have lubrication grooves and holes
    • Diameter 'B' and 'D' are concentric within .005 TIR
    • BALL
      • 400 series stainless steel
      • Heat treated

    • RACE
      • 17-4 PH stainless steel
      • Heat treated

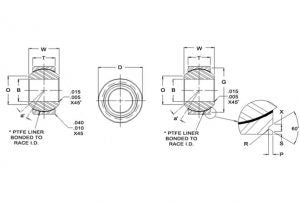

    BEARING
    PART
    NUMBER
    		 BEARING
    PART
    NUMBER    		 B
    DIA    		 D
    DIA    		 W
    WTH    		 T
    WTH    		 O
    DIA    		 G
    DIA    		 BALL
    DIA    		 a MIS
    ANGLE    		 ULTIMATE
    LOAD
    RATING    		 STATIC
    LIMIT
    LOAD    		 STATIC
    LIMIT
    LOAD    		 OSCILLATING
    LOAD
    RATING    		 APPROX
    WEIGHT
    PTFE LINER +.0000
    -.0005    		 +.0000
    -.0005    		 +.000
    -.005    		 +.005
    -.005    		 REF +.000
    -.008    		 REF MIN RADIAL
    (lbs)    		 RADIAL
    (lbs)    		 AXIAL
    (lbs)    		 PTFE LINED
    (lbs)    		 (lbs)
    FKSSX3 FKSSX3T .1900 .5625 .281 .218 .293 .500 .406 11 4,800 3,975 150 1,500 .020
    FKSSX4 FKSSX4T .2500 .6562 .343 .250 .364 .594 .500 13.5 7,500 6,040 430 3,320 .020
    FKSSX5 FKSSX5T .3125 .7500 .375 .281 .419 .650 .562 12 10,400 8,750 700 5,460 .030
    FKSSX6 FKSSX6T .3750 .8125 .406 .312 .516 .712 .656 10 14,000 10,540 1,100 6,600 .040
    FKSSX7 FKSSX7T .4375 .9062 .437 .343 .530 .806 .687 9.5 16,750 13,200 1,400 8,050 .050
    FKSSX8 FKSSX8T .5000 1.0000 .500 .390 .600 .876 .781 9.5 20,000 17,900 2,100 10,400 .070
    FKSSX9 FKSSX9T .5625 1.0937 .562 .437 .671 .970 .875 9.5 27,000 23,200 3,680 13,000 .090
    FKSSX10 FKSSX10T .6250 1.1875 .625 .500 .739 1.063 .968 8.5 36,000 30,500 4,720 16,450 .120
    FKSSX12 FKSSX12T .7500 1.4375 .750 .593 .920 1.313 1.187 9 54,000 46,400 6,750 23,600 .210
    FKSSX14 FKSSX14T .8750 1.5625 .875 .703 .980 1.438 1.312 9.5 77,000 62,600 9,350 30,250 .270
    FKSSX16 FKSSX16T 1.0000 1.7500 1.000 .797 1.118 1.626 1.500 10 93,500 82,200 12,160 38,000 .390
