Uniball Spherical Bearing AIN

Uniball Spherical Bearing AIN

$45.00 AUD
$45.00 AUD
Sale Sold out
  • Heavy-duty precision series
  • PTFE liner

BALL

  • 52100 Steel
  • Rc 56 min
  • Hard chrome plated

RACE

  • Alloy steel
  • Heat treated
  • Oil coated

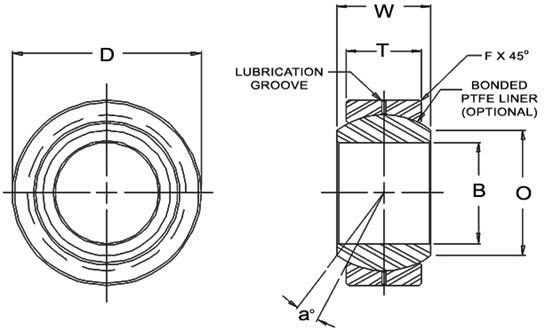

BEARING
PART
NUMBER		 B
DIA		 D
DIA		 W
WTH		 T
WTH		 O
DIA		 BALL
DIA		 F
CHAMFER		 a MIS
ANGLE		 ULT STATIC
RADIAL
LOAD		 APPROX
WEIGHT
+.0015
-.0005		 +.0000
-.0007		 +.005
-.005		 +.005
-.005		 REF. REF. REF. REF. (lbs) (lbs)
AIN3 .1900 .5312 .312 .250 .307 .437 .020 10.5 6,550 .016
AIN4 .2500 .6094 .375 .281 .331 .500 .020 14.5 8,427 .023
AIN5 .3125 .7500 .437 .344 .448 .625 .020 11.0 12,912 .039
AIN6 .3750 .8437 .500 .406 .516 .719 .020 9.5 17,512 .059
AIN7 .4375 1.0000 .562 .437 .587 .812 .020 11.0 21,290 .079
AIN8 .5000 1.0937 .625 .500 .699 .937 .020 9.5 28,110 .110
AIN10 .6250 1.3125 .750 .562 .839 1.125 .030 12.0 37,930 .165
AIN12 .7500 1.5000 .875 .687 .978 1.312 .030 10.0 48,675 .252
AIN14 .8750 1.5000 .875 .687 .978 1.312 .030 6.0 48,675 .248
AIN14T-770 .8750 1.6250 .875 .750 1.061 1.375 .035 6.0 58,650 .350
AIN16 1.0000 2.1250 1.375 1.000 1.275 1.875 .060 15.0 90,000 .788
