1" Misalignment Spacer

1″ High Misalignment Spacers for HEIM JOINTS or Rod End bearings.

This allows for much more side play and the use of a smaller bolt.

Sold Separately / Individually (need 2 per heim, rod end, uniball)

Material: Stainless Steel

Measurements for drawing:

Shoulder Height (A) 16mm - 5/8
Head Diameter (B) 32mm
Inside Diameter (C) Reduces from 19mm to 14mm
Outside Diameter (D) Fits, 1" Bore (1.25", 1" Heim, 1"UniBall)
Depth (E) 17mm
Overall Height (F) 30mm

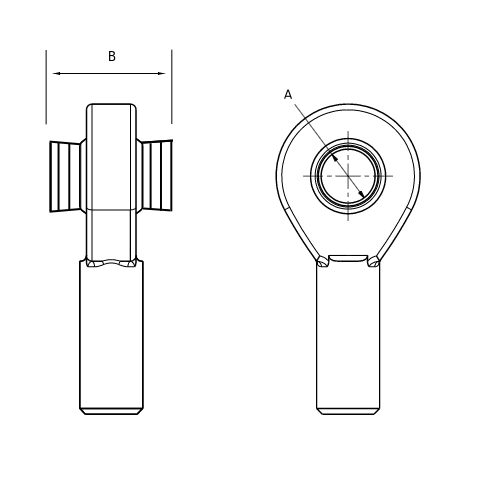

B in Heim) Stack or Total width, 60.5mm, 67mm or 73mm

*HEIM joint not included.
