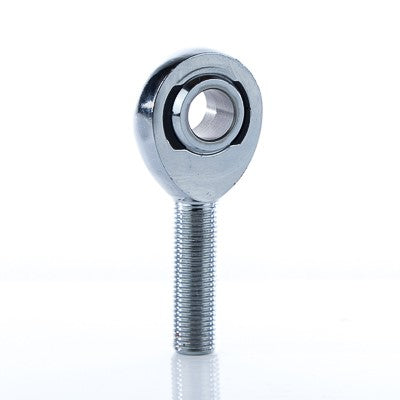

Rod End KMX
Rod End KMX
Regular price
$100.00 AUD
Regular price
Sale price
$100.00 AUD
Unit price
/
per
Couldn't load pickup availability
- 3-piece construction
- Nylon race series
- Loader slot design
-
BALL
- 52100 steel
- Rc 56 min
- Hard chrome plated
-
BODY
- Alloy steel
- Heat treated
- Chrome plated
-
RACE
- Nylon 10 or equivalent
- Nylon 10 or equivalent
| Right Hand Part Number |
Left Hand Part Number |

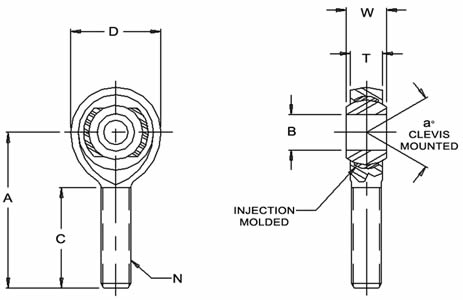

B DIA |
D DIA |
W WTH |
T WTH |
Ball DIA |
A LGTH |
N THD |
C LGTH |
a Mis Angle |
ULT Static Radial Load |
Approx Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| +.0025 -.0005 |
+.010 -.010 |
+.005 -.005 |
+.005 -.005 |
REF | +.015 -.015 |
UNF 3A |
+.062 -.031 |
REF | (lbs) | (lbs) | ||
| KMX5 | KMXL5 | .3125 | .875 | .437 | .344 | .625 | 1.875 | 5/16-24 | 1.250 | 14 | 7,600 | .07 |
| KMX6-5 | KMXL6-5 | .3125 | 1.000 | .437 | .344 | .625 | 1.938 | 3/8-24 | 1.250 | 14 | 7,600 | .07 |
| KMX6 | KMXL6 | .3750 | 1.000 | .500 | .406 | .719 | 1.938 | 3/8-24 | 1.250 | 12 | 9,500 | .11 |
| KMX8 | KMXL8 | .5000 | 1.312 | .625 | .500 | .937 | 2.438 | 1/2-20 | 1.500 | 12 | 12,696 | .24 |
| KMX10-8 | KMXL10-8 | .5000 | 1.500 | .625 | .500 | .937 | 2.625 | 5/8-18 | 1.625 | 12 | 19960 | .36 |
| KMX10 | KMXL10 | .6250 | 1.500 | .750 | .562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 14,480 | .36 |
| KMX12-8 | KMXL12-8 | .5000 | 1.750 | .750 | .562 | 1.125 | 2.875 | 3/4-16 | 1.750 | 14 | 23,256 | .57 |
| KMX12-10 | KMXL12-10 | .6250 | 1.750 | .750 | .562 | 1.125 | 2.875 | 3/4-16 | 1,750 | 14 | 23,256 | .57 |
| KMX12 | KMXL12 | .7500 | 1.750 | .875 | .687 | 1.312 | 2.875 | 3/4-16 | 1.750 | 14 | 23,192 | .57 |
| KMX14 | KMXL14 | .8750 | 2.000 | .875 | .770 | 1.375 | 3.375 | 7/8-14 | 2.000 | 12 | 45,051 | .88 |
| KMX14-12 | KMXL14-12 | .7500 | 2.000 | .875 | .687 | 1.312 | 3.375 | 7/8-14 | 1.875 | 12 | 43,485 | .88 |
| KMX16 | KMXL16 | 1.000 | 2.750 | 1.375 | 1.000 | 1.875 | 4.125 | 1.250-12 | 2.125 | 17 | 76,200 | 2.41 |
